Postprocess

The <postprocess> tag in Gurted allows you to apply real-time visual effects to your entire webpage through GPU-accelerated shaders. These effects are rendered as an overlay on top of your content, not affecting the browser UI.

Usage​

The postprocess tag supports three ways to define shader effects:

<!-- Using built-in presets -->
<postprocess preset="crt" />

<!-- Loading external shader files -->
<postprocess src="custom-shader.gdshader" />

<!-- Inline shader code -->
<postprocess>
shader_type canvas_item;
void fragment() {
    COLOR = texture(SCREEN_TEXTURE, SCREEN_UV);
}
</postprocess>

Shader Tutorial​

For documentation on how to write GDShader code, see the Godot Shader Language documentation.

Parameters​

HTML attributes are automatically converted to shader uniforms with the following supported types:

Numeric Types​

<!-- Float values -->
<postprocess preset="vignette" vignette_strength="1.5"></postprocess>

<!-- Integer values -->
<postprocess preset="snowfall" num_of_layers="25"></postprocess>

<!-- Boolean values -->
<postprocess preset="custom" enable_effect="true"></postprocess>

Vector Types​

<!-- Vector2 -->
<postprocess preset="rblur" blur_center="Vector2(0.3, 0.7)"></postprocess>
<postprocess preset="rblur" blur_center="vec2(0.3, 0.7)"></postprocess>

<!-- Vector3 -->
<postprocess preset="lensflare" tint="Vector3(1.4, 1.2, 1.0)"></postprocess>
<postprocess preset="lensflare" tint="vec3(1.4, 1.2, 1.0)"></postprocess>

<!-- Vector4 -->
<postprocess preset="vignette" vignette_color="Vector4(0.0, 0.0, 0.0, 1.0)"></postprocess>
<postprocess preset="vignette" vignette_color="vec4(0.0, 0.0, 0.0, 1.0)"></postprocess>

Color Values​

<!-- Hex colors -->
<postprocess preset="vignette" vignette_color="#ff0000"></postprocess>

<!-- Named colors work as strings -->
<postprocess preset="snowfall" snow_color="white"></postprocess>

Built-in Preset Shaders​

CRT Monitor Effect​

Creates a retro CRT monitor appearance with scanlines, distortion, and screen curvature.

<postprocess preset="crt"></postprocess>

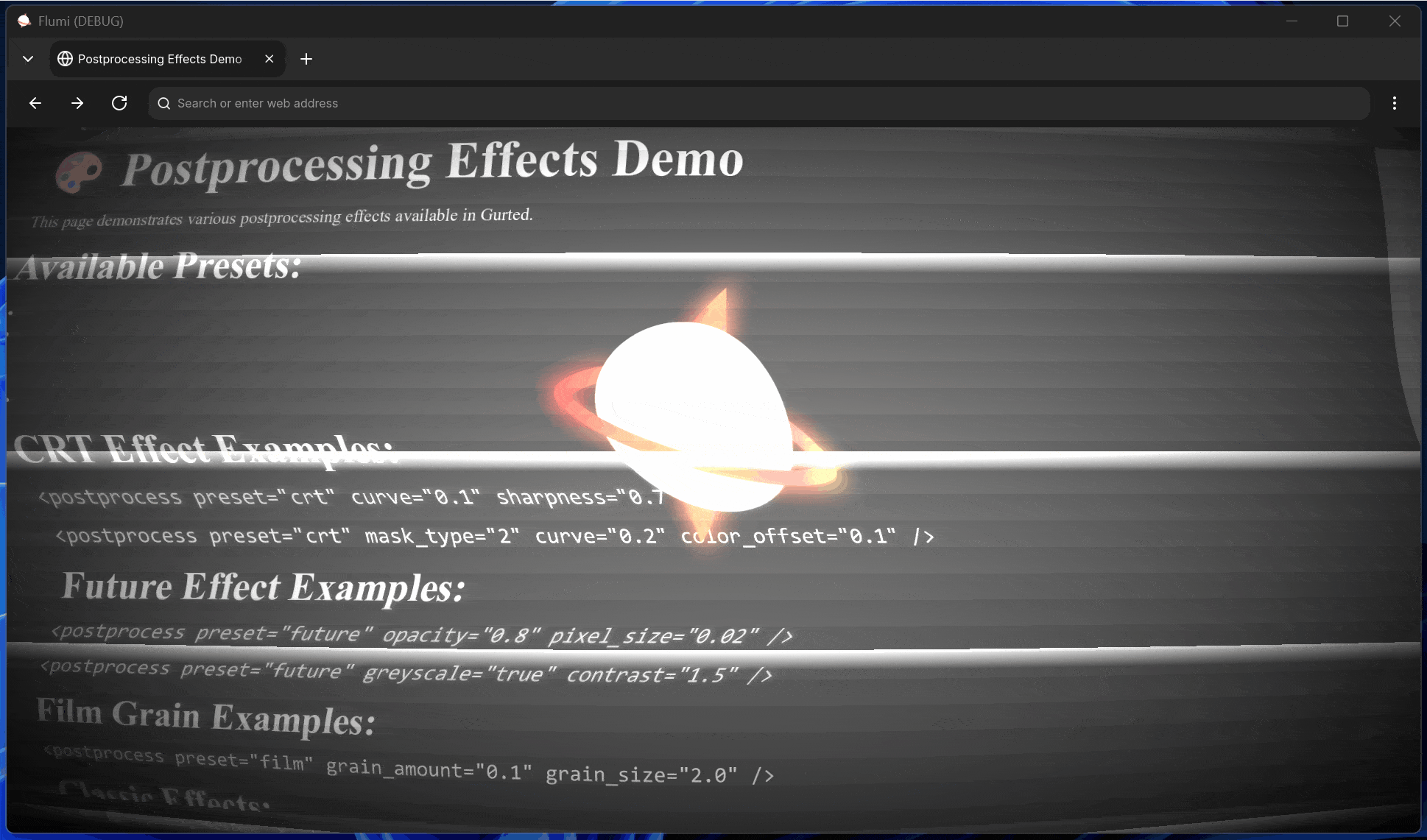

CRT effect

Available Properties:

  • curvature (0.0-10.0, default: 2.0) - Screen curvature amount
  • skip (0.0-1.0, default: 1.0) - Vertical hold distortion intensity
  • image_flicker (0.0-1.0, default: 1.0) - Image flicker intensity
  • vignette_flicker_speed (0.0-2.0, default: 1.0) - Vignette animation speed
  • vignette_strength (0.0-2.0, default: 1.0) - Dark edge vignette intensity
  • small_scanlines_speed (0.0-10.0, default: 1.0) - Fine scanline animation speed
  • small_scanlines_proximity (0.01-2.0, default: 1.0) - Fine scanline density
  • small_scanlines_opacity (0.01-5.0, default: 1.0) - Fine scanline visibility
  • scanlines_opacity (0.0-2.0, default: 1.0) - Main scanline visibility
  • scanlines_speed (0.0-5.0, default: 1.0) - Main scanline animation speed
  • scanline_thickness (0.0-0.6, default: 0.5) - Scanline thickness
  • scanlines_spacing (0.3-3.0, default: 1.0) - Space between scanlines

Film Grain Effect​

Adds vintage film grain noise to give content an analog film appearance.

<postprocess preset="film"></postprocess>

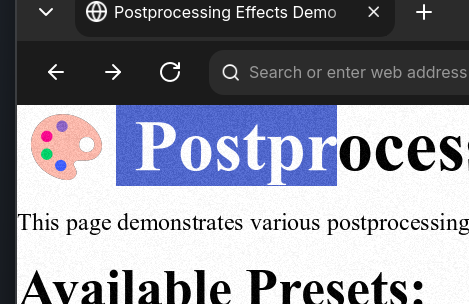

Film grain effect

Available Properties:

  • grain_amount (0.0-1.0, default: 0.05) - Amount of grain noise added
  • grain_size (0.1-10.0, default: 1.0) - Size/scale of individual grain particles

Vignette Effect​

Creates a darkened border around the screen edges, focusing attention on the center.

<postprocess preset="vignette"></postprocess>

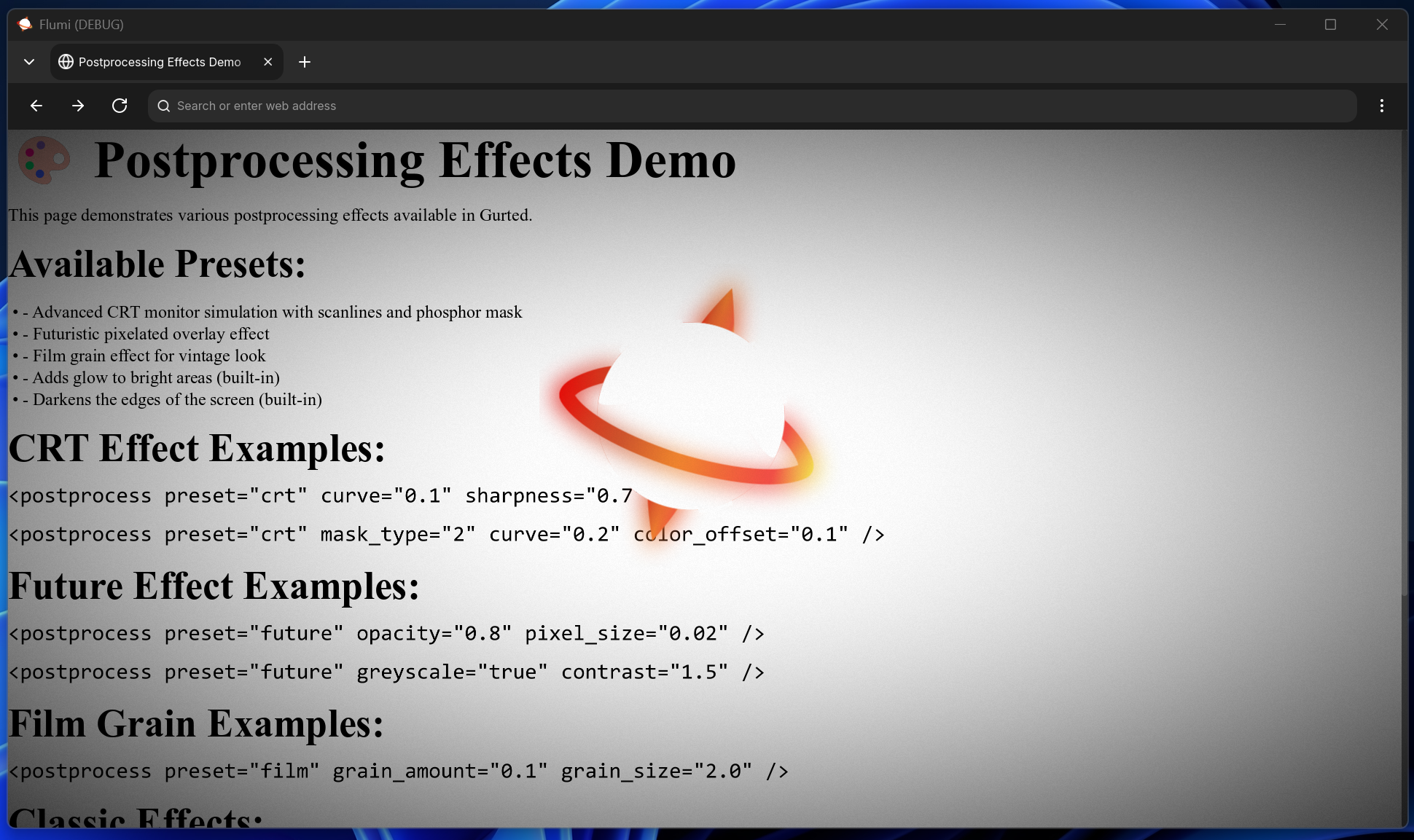

Vignette effect

Available Properties:

  • inner_radius (0.0-1.0, default: 0.1) - Inner edge of the vignette effect
  • outer_radius (0.0-1.0, default: 1.0) - Outer edge where vignette is strongest
  • vignette_strength (0.0-2.0, default: 1.0) - Intensity of the darkening effect
  • dither_strength (0.0-1.0, default: 0.03) - Noise added to prevent banding
  • vignette_color (color, default: black) - Color of the vignette overlay

Pencil Effect​

Converts the webpage into a pencil drawing style with adjustable thresholds for line detection.

<postprocess preset="pencil"></postprocess>

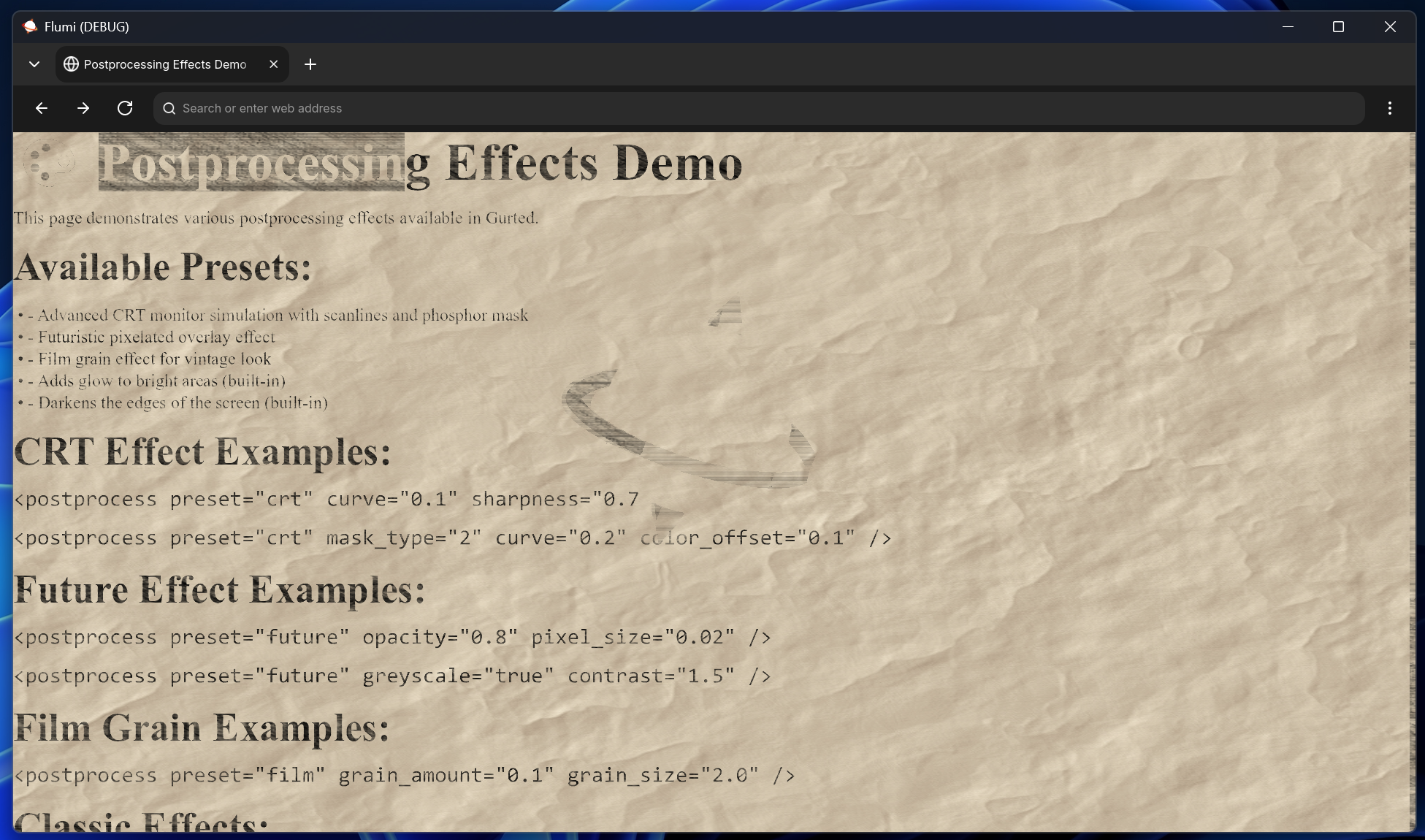

Pencil effect

Available Properties:

  • u_bgColorFactor (0.0-1.0, default: 0.4) - Blend amount of background color
  • u_threshold1 (0.0-1.0, default: 0.75) - Brightest areas threshold
  • u_threshold2 (0.0-1.0, default: 0.50) - Medium-bright areas threshold
  • u_threshold3 (0.0-1.0, default: 0.25) - Medium-dark areas threshold
  • u_threshold4 (0.0-1.0, default: 0.05) - Darkest areas threshold
  • u_bgTiling (Vector2, default: vec2(1.0, 1.0)) - Background texture tiling
  • u_patternTiling (Vector2, default: vec2(1.0, 1.0)) - Pattern texture tiling
  • u_bgColor (color, default: white) - Background paper color
  • u_patternColor (color, default: black) - Pencil line color

Snowfall Effect​

Adds animated falling snow particles over the content with customizable layers and physics.

<postprocess preset="snowfall"></postprocess>

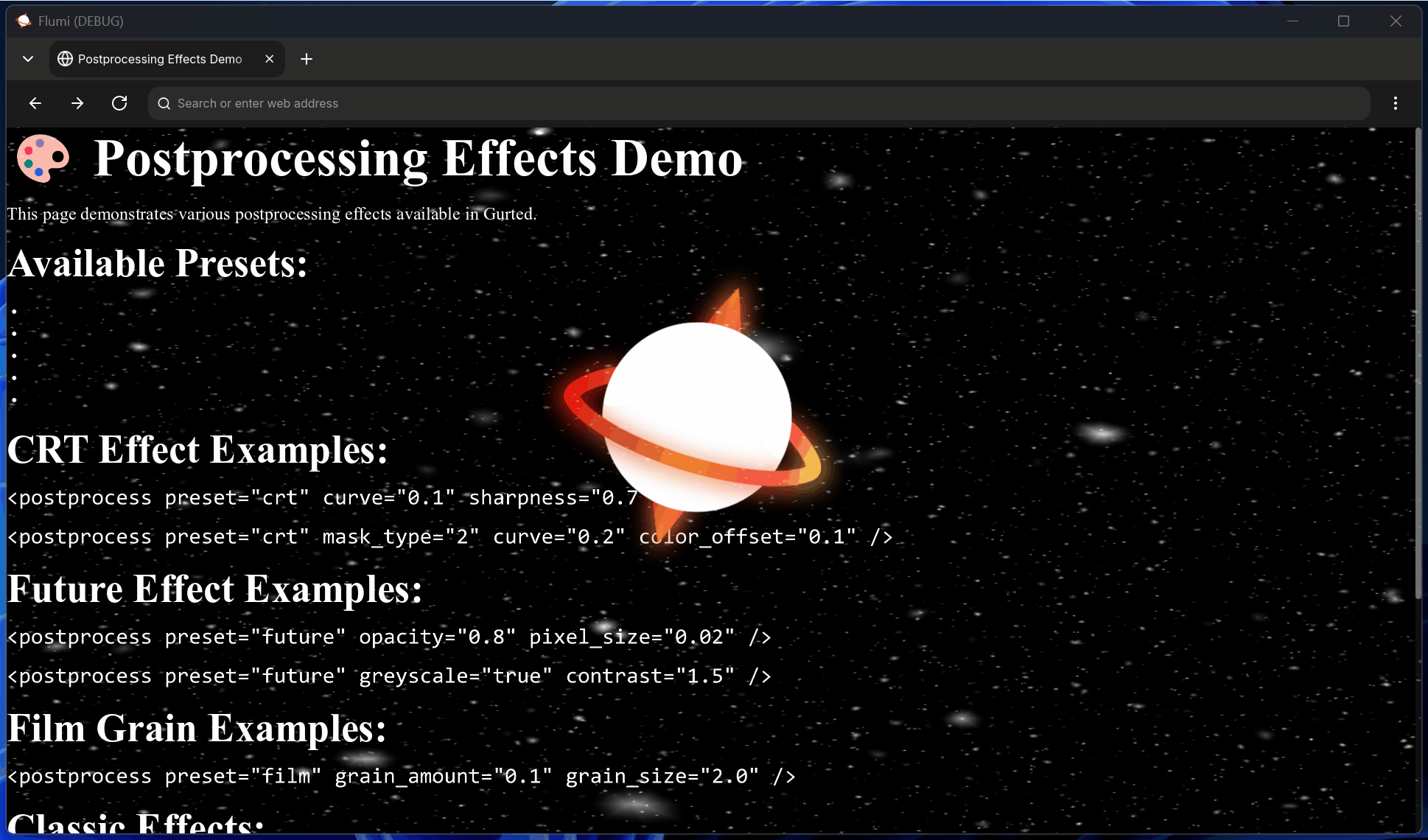

Snowfall effect

Available Properties:

  • spread (0.0-1.5, default: 0.5) - Horizontal spread of snowflakes
  • size (0.01-5.0, default: 0.5) - Size of individual snowflakes
  • snow_color (color, default: white) - Color of the snow particles
  • snow_transparency (-0.5-1.0, default: 0.2) - Transparency of snow overlay
  • speed (0.0-10.0, default: 0.5) - Falling speed of snowflakes
  • wind (-2.0-2.0, default: 0.0) - Horizontal wind effect
  • num_of_layers (integer, default: 40) - Number of snow layers for depth

Chromatic Aberration Effect​

Simulates lens distortion by separating RGB color channels, creating a retro video glitch effect.

<postprocess preset="chrome"></postprocess>

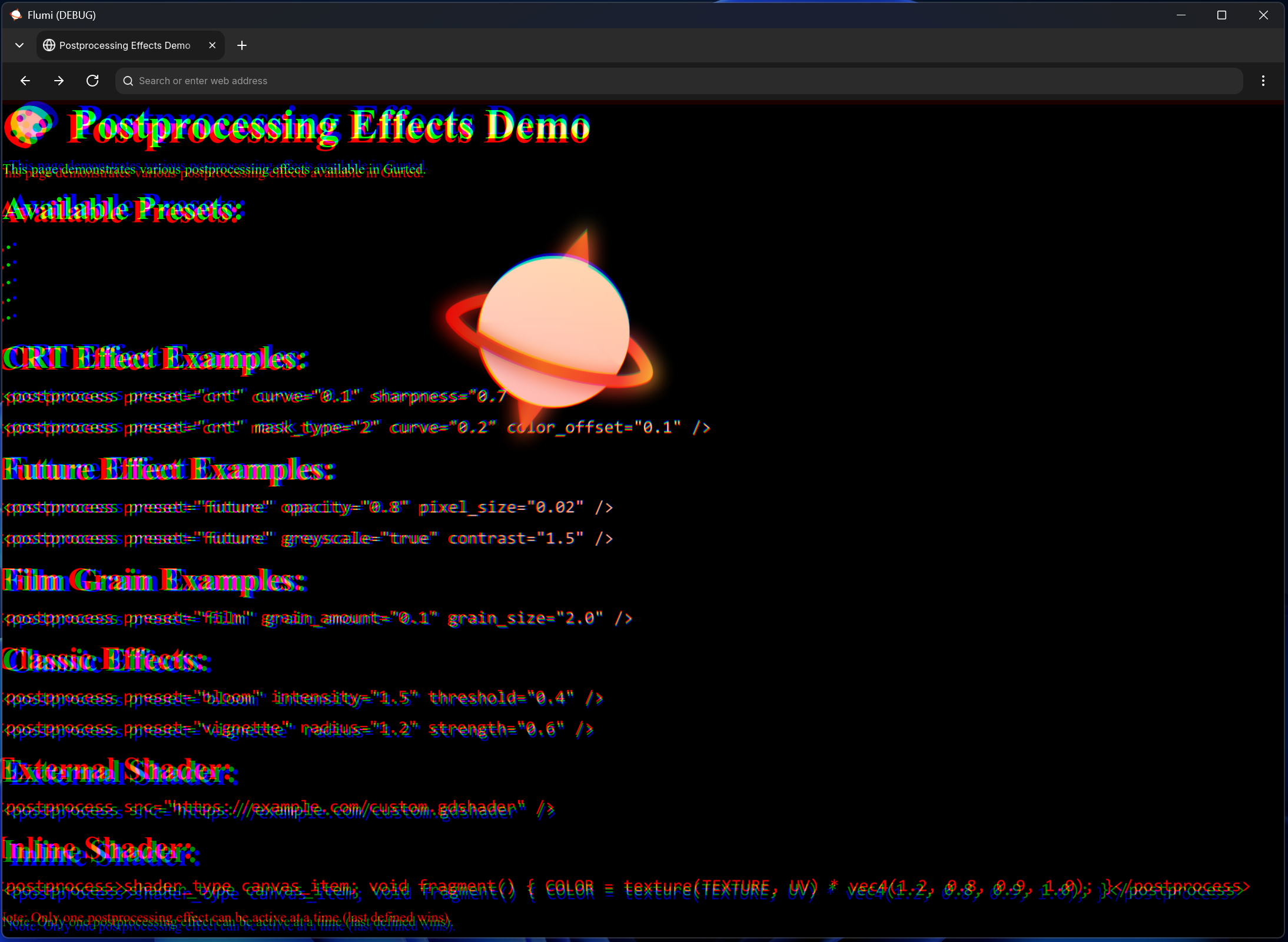

Chrome effect

Available Properties:

  • levels (integer, default: 3) - Number of color separation levels
  • spread (float, default: 0.01) - Amount of color channel separation

Radial Blur Effect​

Creates motion blur radiating from a center point, useful for speed effects or focus attention.

<postprocess preset="rblur"></postprocess>

Radial blur effect

Available Properties:

  • blur_center (Vector2, default: vec2(0.5, 0.5)) - Center point of the blur effect
  • blur_power (0.0-1.0, default: 0.01) - Intensity of the blur effect
  • sampling_count (1-64, default: 2) - Quality of the blur (higher = smoother)

Lens Flare Effect​

Adds realistic lens flare effects, simulating light hitting a camera lens.

<postprocess preset="lensflare"></postprocess>

Lensflare effect

Available Properties:

  • sun_position (Vector2, default: vec2(400.0, 0.0)) - Position of the light source
  • tint (Vector3, default: vec3(1.4, 1.2, 1.0)) - Color tint of the lens flare

Foliage Sway Effect​

Creates animated wave distortion effects, mimicking vegetation movement or underwater effects.

<postprocess preset="foliage"></postprocess>

Foliage effect

Available Properties:

  • x_intensity (float, default: 3.0) - Horizontal sway intensity
  • y_intensity (float, default: 0.5) - Vertical sway intensity
  • offset (float, default: 0.0) - Animation offset for timing
  • speed (0-20, default: 2.0) - Animation speed
  • wave_frequency (0-100, default: 20) - Frequency of wave oscillations
  • wave_length (50-800, default: 200.0) - Length of wave patterns

Dithering Effect​

Applies retro pixel art dithering with color palette reduction for a vintage gaming aesthetic.

<postprocess preset="dither"></postprocess>

Dither effect

note

Due to the limitations of GDShader, the dithering effect relies on a GradientTexture node internally. This means the colors are hardcoded to be a rusty tint - unchangeable via parameters. A similar effect can be achieved with a custom <postprocess> shader without external nodes - however, that's beyond the scope of this preset.

Available Properties:

  • pixel (float, default: 1.0) - Pixel size for the dithering pattern

All postprocess shaders are GPU-accelerated thanks to Godot's shader system.
